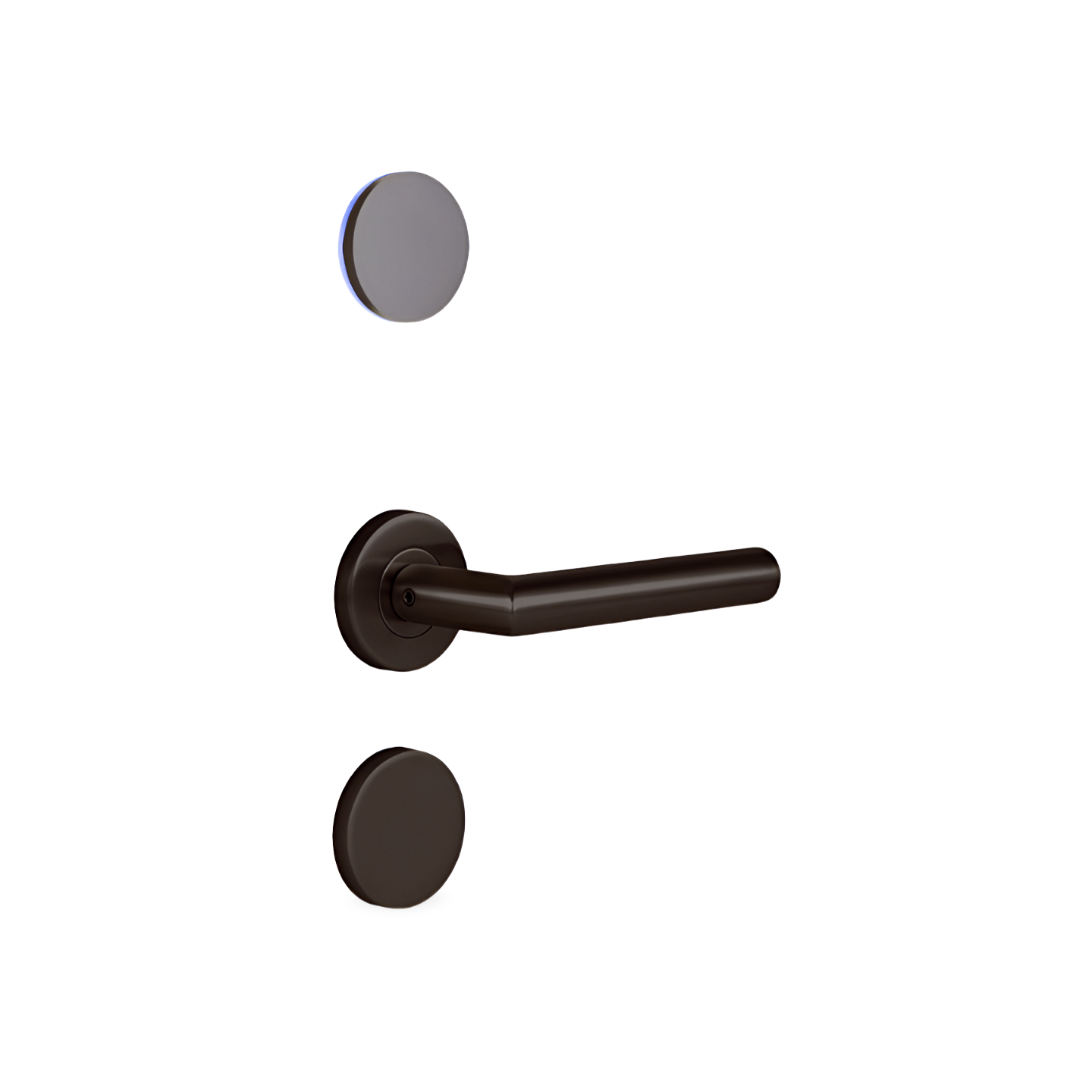

ELECTRONIC HOTEL LOCK - SHADOW II RFID

Model No:
S6G1M
Category:
Hotel Locks
Domain:
Hotels & Resorts

The Electronic Hotel Lock - SHADOW II RFID is a sophisticated and reliable locking system designed for hotels, resorts, and other similar accommodation facilities. It operates using RFID (Radio-Frequency Identification) technology, allowing guests to access their rooms with a keycard.

Make Order
ELECTRONIC HOTEL LOCK - SHADOW II RFID

Details

The Hallmark Locks SHADOW II RFID series is custom-designed for hotels, with a focus on ensuring that the lock seamlessly integrates with the necessary hardware and the door.

This series is particularly well-suited for contemporary and modern hotel environments, elevating the overall appearance of the corridor with its aesthetically pleasing design that blends in with the hotel's decor style.

The SHADOW II RFID series prioritizes minimalism, giving architects and designers maximum design freedom while preserving the door's aesthetic appearance. With its emphasis on less being more, this series offers a stylish and functional solution for hotels seeking to upgrade their locking system.

Features:

  • Stand alone electronic lock with RFID technology.
  • High security stainless steel mortise lockcase available in DIN version.
  • Stainless steel handle with long lasting painting finish.
  • 3-point stainless steel latch construction with antifriction mechanism.
  • Mortise equipped 20mm throw high strength deadbolt.
  • Panic release function - the deadbolt and latch are automatically retracted by inside handle for easy regress in emergency situation.
  • ADA compliant (guest with physical disabilities).
    Future proof re-programmable FLASH RAM lock memory.
  • Powered by four AA batteries that provide up to 1 year normal life time.
  • 1000 event audit trail.
  • Compatible with BIS HOTEL software platform.
  • High security mechanical override cylinder available.

Specifications

  • 13.56MHz technology
  • Compatible with the following standard - ISO 14443 A (MIFARE Classic)
  • Eleven free sectors for future All-in-one card application use

Technical Data:

  • Power: 4 x 1.5V AA alkaline batteries
    Battery Location: Inside of the door
    Handles: Stainless steel quality SUS304
  • Sensor: PC
  • Metal Finishes: Silver, Matte Black
  • Emergency Opening Options: Emergency Opening with Mechanical cylinder
  • Locking Mechanism: Electro-mechanical locking mechanism
  • Door Thickness: 35-60mm
  • System Software Compatibility: BIS Hotel
  • Storage Temperature: Workable -20?C~60?C: non-condensing environment
  • Tested Operating Temperature: Tested from -25?C~70?C
  • Mortise: Compatible with DIN-65 mortise
  • Supported RFID Standard: ISO 14443 A (MIFARE Classic)
