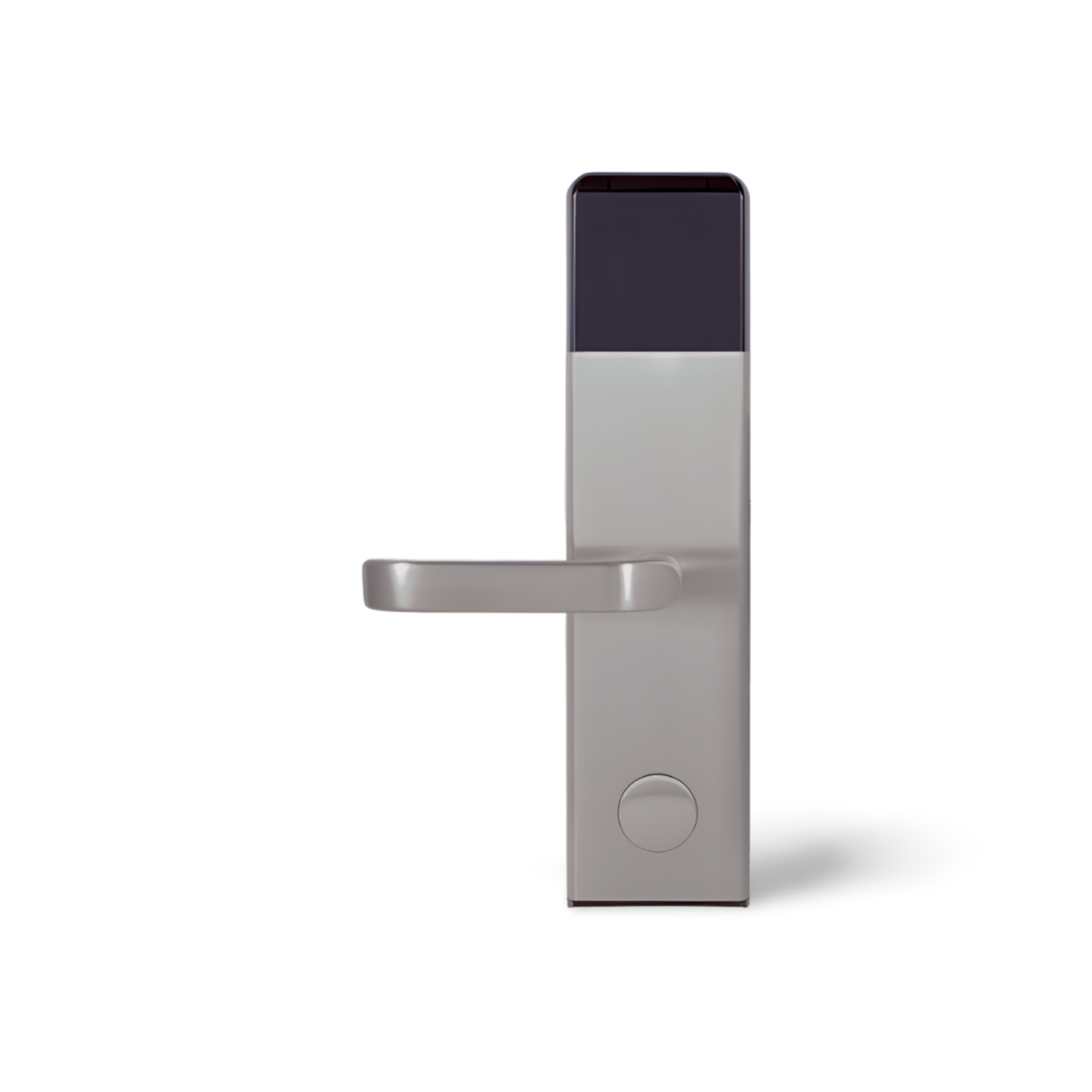

ELECTRONIC HOTEL LOCK - BASE RFID (9248 SERIES)

Model No:
9248 - 65A
Category:
Hotel Locks
Domain:
Hotels & Resorts

BASE RFID (9248 SERIES)

This model 9248 - 65A  is a top-tier smart lock that integrates advanced high-tech security locks using Radio Frequency Identification (RFID) technology. Designed as one of the best locks for hotels, this electronic lock delivers secure, keyless entry for seamless access control. Perfect for modern hotel locks, it provides a high-security locks solution while remaining cost-effective. As part of a cutting-edge lock system, this digital lock ensures flexibility for future All-in-One card applications, making it an ideal choice for door locks in hospitality settings.

Make Order
ELECTRONIC HOTEL LOCK - BASE RFID (9248 SERIES)

Details

Features:

  • Standalone electronic lock featuring RFID technology
  • High-security stainless steel mortise lockcase, available in ANSI, AUS, and EURO versions.
  • Stainless steel handle with a brushed surface.
  • 3-point stainless steel latch construction with an anti-friction mechanism.
  • Mortise equipped with a 20mm throw high-strength deadbolt.
  • Panic release function: the deadbolt and latch are automatically retracted by the inside handle for easy retreat in emergency situations.
  • ADA compliant for guests with physical disabilities.
    Future-proof, re-programmable FLASH RAM lock memory.
  • Powered by four double AA alkaline batteries providing up to 9 months of normal lifetime.

Specifications

RFID Specifications:

  • 13.56MHz technology
  • Compatible with the following standard : ISO 14443 A (MIFARE Classic)
  • Eleven free sectors for future All-in-one card application us

Technical Data:

  • Power :4 X 1.5V AA alkaline batteries
  • Battery Location: Inside of the back lock
  • Handles: Stainless steel
  • Lock body: Stainless steel quality SUS304
  • Metal Finishes:Silver
  • Emergency Opening Options:Emergency Opening with Mechanical cylinder
  • Locking Mechanism - Electro-mechanical locking mechanism
  • Door Thickness 35-80mm (only for EURO mortise)
  • System Software Compatibility with BIS Hotel
  • Storage Temperature -40°C~80°C,non-condensing environment
  • Tested Operating Temperature:Tested from :-20C~66°C
  • Supported RFID Standard ISO 14443 A (MIFARE Classic)

Download Specifications
